Программаторы, флэшеры......X-Prog M v 5.55

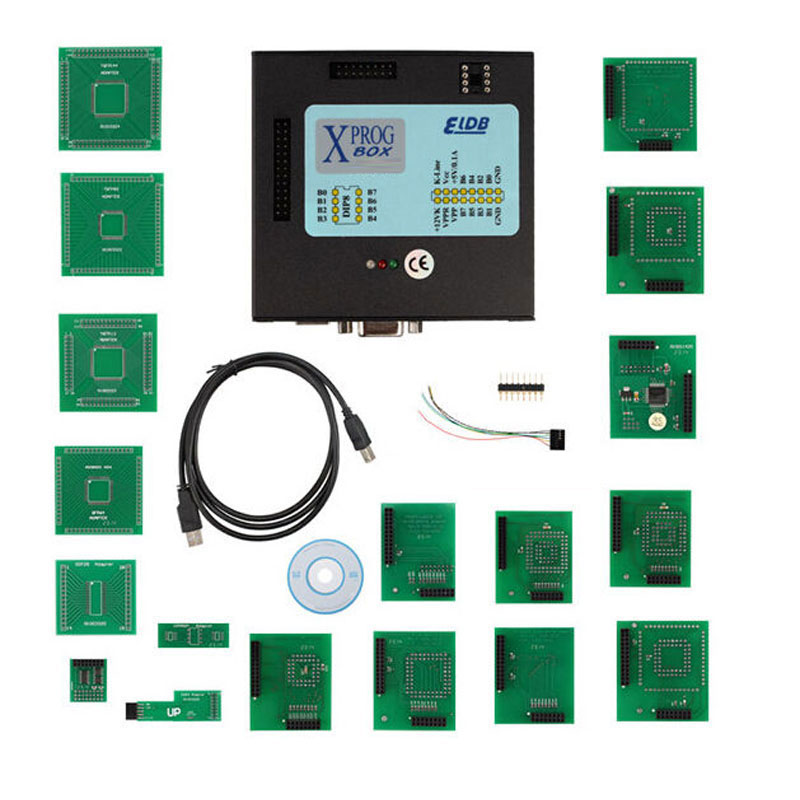

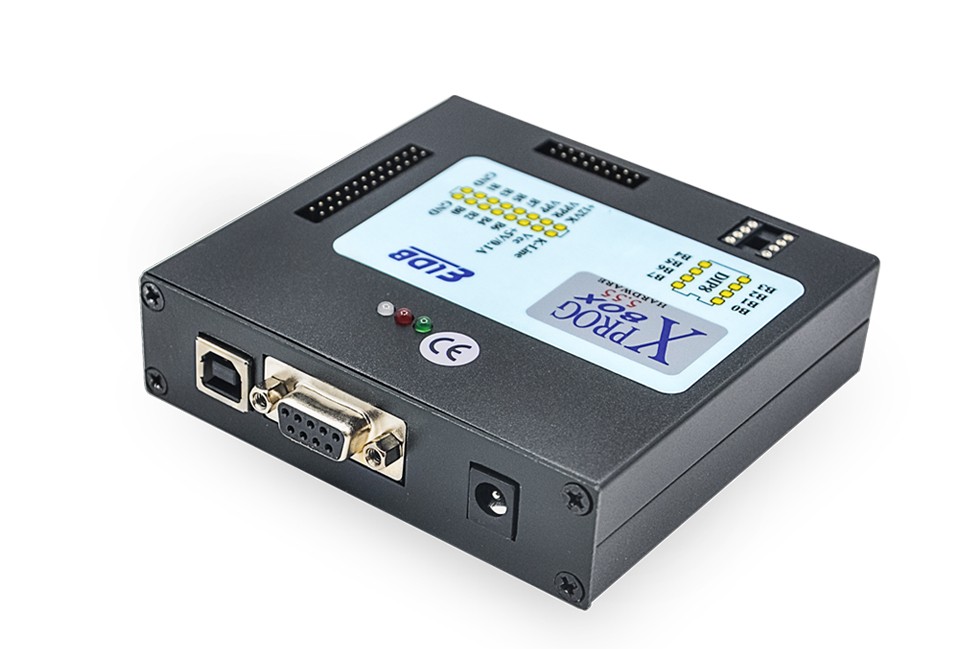

 XPROG-Box 5.55 (xprog-m 5.5.5) является обновленной версией популярного программатора для автомобильной электроники версий x-prog 5.45 и 5.48, в которой добавлена поддержка процессоров MC9S12XHY256 (0M23Y), MC9S12XS128 D-FLASH Secured, MC9S12XS128 P-FLASH Secured, Land Rover SRS unit BJ32-14D374-AC и др. В общей сложности, программатор x-prog поддерживает работу более чем с 450-ю наименований различных EEPROM, Микроконтроллеров, Электронных блоков управления, Панелей приборов, иммобилайзеров, калькуляторов и пр. Расширена поддержка группы VAG. Открыты все авторизации для полного функционала.

XPROG-box 5.55 список поддерживаемых микросхем:

• Serial EEPROMs 24Cxx, 25Cxx, 93Cxx, 95xxx, MDA2062, NVM3060, M6M800xx, S2100, S24Hxx, TC89xxx, X2444, M35080 .

• MC68HC05 MC68HC05B6 (0F10V, 3D33J), MC68HC05B8, MC68HC05B16, MC68HC05B32 (0D60J, 3G96A) , MC68HC05X32(0D53J, 0D69J, 1H52A, 1D69J), MC68HC705X32(2D59J), MC68HC705B16(0D28J), MC68HC705B16N, MC68HC705B32, MC68HC05E6(0F82B, 0G72G), MC68HC05H12(0H57A), MC68HC05P3(1E25B),MC68HC705P3(1F75B) , MC68HC05K3(S105078003).

• MC68HC05(bypass security) MC68HC05Bxx, MC68HC05Xxx..

• MC68HC08 MC68HC08AS32, MC68HC08AZ32, MC68HC08AZ32(0J66D), MC68HC908AZ32(0L72A), MC68HC08AZ32A(1L52H), MC68HC08AZ32A(2L52H), MC68HC08AS60, MC68HC08AS60(8H62A), MC68HC908AS60(3J74Y), MC68HC08AZ60, MC68HC08AZ60(2J74Y), MC68HC08AZ60A, MC68HC08AZ60A(1L87J), MC68HC908AZ60A(3K85K).

• MC68HC11 MC68HC11A1(C11W), MC68HC11A8(AB95T), MC68HC11E1, MC68HC11E9(4E28B,0F36W), MC68HC11EA9(0D46J,1D47J, 2D47J), MC68HC11F1(2F37E), MC68HC11F1(E87J), MC68HC11K4, MC68HC11K4(0E75J), MC68HC11K4(1E62H), MC68HC11K4(3E74J), MC68HC11KA4, MC68HC11KA4(0E57S), MC68HC11KS2(1E59B), MC68HC11KS2(0H95B), MC68HC11KW1, MC68HC11L6, MC68HC11P2(3E74J), MC68HC11P2(1E53M), MC68HC11P2(0G10V), MC68HC11PA8, MC68HC11PH8, MC68HC11PH8(3D64J), MC68HC11PH8(0H30R).

• MC68HC11(bypass sercurity) MC68HC11A1(C11W), MC68HC11A8(AB95T), MC68HC11E1, MC68HC11E9(4E28B,0F36W), MC68HC11EA9(0D46J,1D47J, 2D47J), MC68HC11F1(2F37E).

• MC68HC(9)12, MC9S12 + bypass sercurity MC68HC12B32, MC68HC912D60, MC68HC912D60A, MC68HC912Dx128, MC68HC912Dx128A, MC9S12C64(0M66G), MC9S12HZ128, MC9S12HZ256, MC9S12DT128(1L40K, 3L40K, 4L40K, 0L94R, 1L59W,5L40K), MC9S12DG128 (0L58S), MC9S12DB128B (0L85D), MC9S12DJ64 (0L86D), MC9S12D64 (1L86D,2L86D), MC9S12DJ64 (3L86D), MC9S12DJ64 (4L86D,0M89C), MC9S12DP256 (0K79X, 1K79X, 2K79X), MC9S12DT128 (1L85D), MC9S12DT256 (0L01Y), MC9S12H256 (1K78X), MC9S12B128 (0L80R, 1L80R, 2L80R, 3L80R ), MC9S12H256 (2K78X), MC9S12DP512 (0L00M , 1L00M, 2L00M), MC9S12C64 (0M66G)

• MC9S12C MC9S12C16, MC9S12C32, MC9S12C64, MC9S12C96, MC9S12C128 Supported Masks: 0M66G, 2L09S (AUTH-0024-1)

• MC9S12C + bypass security MC9S12C64 Supported Masks: 0M66G (AUTH-0024-1)
• MC9S12HA/HY/P  9S12HA32/48/64(P-FLASH, D-FLASH), 9S12HY32/48/64(P-FLASH, D-FLASH), 9S12P32/64/96/128 (P-FLASH, D-FLASH) (AUTH-0024-4)
• MC9S12X + bypass sercurity MC9S12XD256, MC9S12XDT384,  MC9S12XDP512 (0L15Y, 1L15Y, 0M84E, 1M84E, 0M42E, 1M42E, 2M42E)
• MC9S12XHZ  MC9S12XHZ256, MC9S12XHZ384, MC9S12XHZ512
• MC9S12XE  MC9S12XET256 (PFLASH, DFLASH, EEPROM),MC9S12XEQ384 (PFLASH, DFLASH, EEPROM), MC9S12XEQ512 (PFLASH, DFLASH, EEPROM),MC9S12XEP768 (PFLASH, DFLASH, EEPROM), MC9S12XEP100 (PFLASH, DFLASH, EEPROM) Supported Masks: 0M53J, 1M53J, 2M53J, 3M25J, 5M48H, 1N35H(AUTH-0024-2)
• MC9S12XE + reset security  MC9S12XEG128 (PFLASH, DFLASH, EEPROM), MC9S12XET256 (PFLASH, DFLASH, EEPROM),MC9S12XEQ384 (PFLASH, DFLASH, EEPROM), MC9S12XEQ512 (PFLASH, DFLASH, EEPROM), MC9S12XET512 (PFLASH, DFLASH, EEPROM), MC9S12XEP768 (PFLASH, DFLASH, EEPROM), MC9S12XEP100,  Supported Masks: 0M53J, 1M53J, 2M53J, 3M25J, 5M48H, 1N35H (AUTH-0024-3)
• MC9S12XS  9S12XS64/128/256(P-FLASH, D-FLASH) 0M04M, 1M04M, 0M05M (AUTH-0024-4)
• MC9S12XS + reset security  9S12XS128(P-FLASH, D-FLASH) 0M04M, 1M04M, 0M05M (AUTH-0024-5)

• ARM Micronas + bypass sercurity CDC3217, CDC3272, CDC3297, CDC32xx + 24C32

• MPC5xx MPC555, MPC556, MPC561, MPC562, MPC563, MPC564, MPC565, MPC566.

• CR16 CR16MCS9V

• ST7/ST10 ST72321, ST72F321, ST72521, ST72F521, ST10F168, ST10F269, ST10F275, ST10F276, ST10F280

• MAC7xxx MAC7241 FLASH, MAC7241 Shadow Block, MAC7242 FLASH, MAC7242 Shadow Block (AUTH-0023-1)

• XC2xxx XC2060N-40, XC2361B-40, XC2361A-56, XC2361B-40 (AUTH-0023-2)

• TMS370/374 TMS370C002A,TMS370C010A, MS370C012A,TMS370C020A, TMS370C022A, TMS370C032A,TMS370C040A, TMS370C042A, MS370C050A, TMS370C052A, TMS370C056A, TMS370C056A, TMS370C256A, TMS374C003APQQ, TMS374CD13APQQ.

• Dashboards 35080 E38, E39, E46, E53, E65, X3-E68

• Dashboards ARM Micronas CDC32xxx AUDI A3, AUDI TT, OCTAVIA, OCTAVIA II, Caddy , GOLF V, JETTA, PASSAT, Touran, 1K0920863B, 1K0920864B, 1K0920874B, 1T0920864A, 1T0920874A, 1Z0920812D, 1Z0920842D, 1Z0920842E, 1Z0920912D, 3C0920852S, 3C0920871D, 8J0920930E, 8P0920931B, 1K0920873B, 1K0920972D, 1Q0920873A, 1K6920974B,1K6920972E, 8P0920931E, 8P0920901K

• Immobilizers EWS-3,

• Другие ZGS 001 A 164 540 56 62, A 169 540 69 45, A 220 445 19 00, A 211 445 25 00, A 211 540 25 45, A 211 540 29 45, A 211 540 35 45, XP8000 XET256
